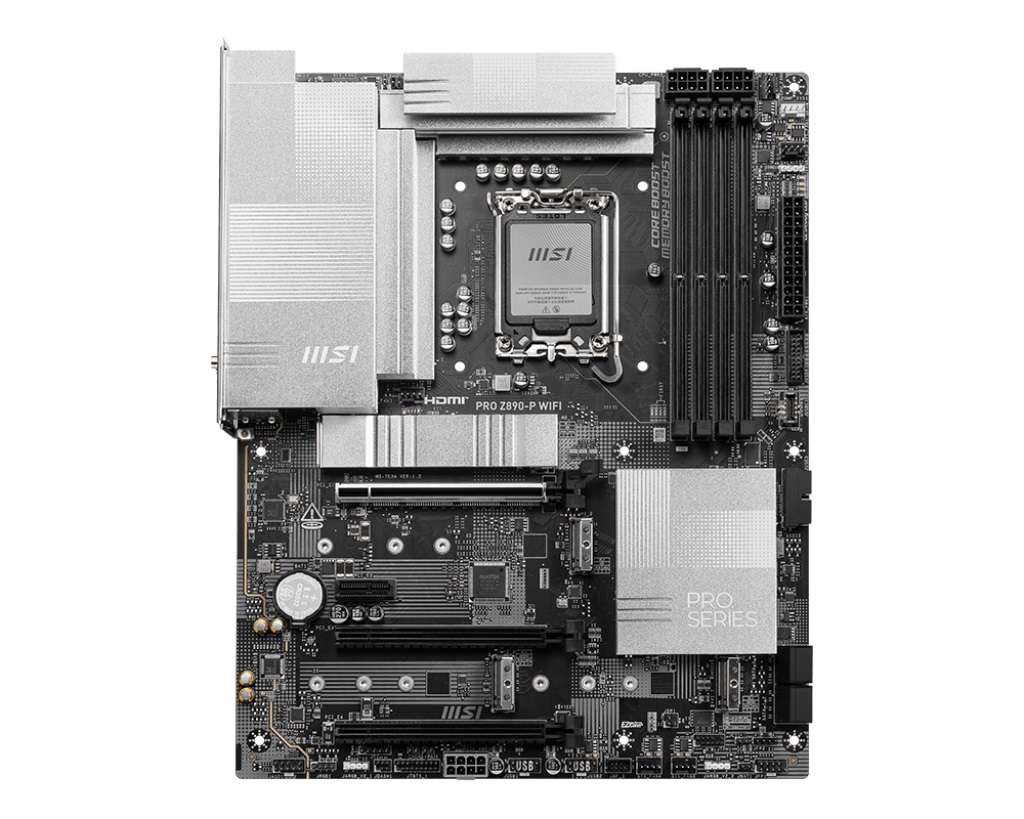

MSI PRO Z890-P WIFI LGA 1851 Intel Z890 DDR5 ATX Motherboard

Description

MSI PRO Z890-P WIFI LGA 1851 Intel Z890 DDR5 ATX Motherboard

The MSI Pro Z890-P WiFi motherboard delivers cutting-edge performance and connectivity for Intel Core Ultra processors. Designed exclusively for Intel’s 15th Gen CPUs, this motherboard uses the advanced Intel Z890 chipset and LGA 1851 socket to power next-gen systems. Its feature-rich design caters to professionals, enthusiasts, and gamers looking for top-tier functionality and reliability.

With support for dual-channel DDR5 memory, the Pro Z890P WiFi ensures blazing-fast data transfer and exceptional multitasking. The board integrates the latest Wi-Fi 7 technology for ultra-fast, low-latency wireless connectivity. For wired networking, it features a high-speed 5G LAN port, perfect for demanding online applications.

The Pro Z890P WiFi is equipped with a PCIe Gen 5 x16 slot, offering unmatched flexibility for high-performance GPUs and expansion cards. Its M.2 slots, also supporting up to PCIe Gen 5, enable lightning-fast SSD performance for faster system boot and data retrieval. Multiple SATA ports provide ample storage options for larger builds.

Modern connectivity includes USB-C 3.2 Gen 2×2 for high-speed data transfers and device charging. Enhanced thermal solutions, including durable heatsinks and an optimized PCB, maintain system stability during intensive workloads. MSI’s intuitive BIOS and software suite make system optimization and customization easy.

Specifications

Chipset & CPU:

• Intel Z890 chipset
• Supports Intel Core™ Ultra (Series 2) processors on LGA 1851 socket

Memory

• 4x DDR5 UDIMM, Maximum Capacity 256GB
• Memory Support 9200 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s
• Supports Intel XMP 3.0, dual-channel mode, and memory overclocking

Onboard Graphics

• 1x HDMI 2.1: 4K 60Hz
• 1x DisplayPort 1.4: 4K 60Hz
• 1x Thunderbolt™ 4 (DisplayPort 2.1 over USB-C): 8K 60Hz

Slots

• 3x PCI-E x16 slots
• 1x PCI-E x1 slot

Storage

• 4x M.2 slots (up to PCIe 5.0 and 4.0 support)
• 4x SATA 6G ports

RAID

• RAID 0, 1, 5, 10 for both SATA and M.2 NVMe storage

Audio

• Realtek ALC897 Codec
• 7.1-Channel High-Definition Audio

Back Panel Ports

• 1x HDMI 2.1
• 1x DisplayPort 1.4
• 1x Thunderbolt™ 4 (40Gbps Type-C)
• 2x USB 2.0 Type-A
• 2x USB 5Gbps Type-A
• 1x USB 10Gbps Type-A
• 1x USB 10Gbps Type-C
• 1x 5Gbps LAN (Realtek 8126)
• Flash BIOS Button
• Audio Out (5.1-Channel Jacks)
• Mouse/Keyboard

LAN

• Realtek 8126 5Gbps LAN

Wireless LAN and Bluetooth

• Intel Wi-Fi 7 and Bluetooth 5.4

Form Factor & Compatibility:

• ATX motherboard, Windows 11 64-bit support
