MSI Pro Z790-P Wifi LGA 1700 Intel Z790 DDR5 ATX Motherboard

Description

MSI Pro Z790-P Wifi LGA 1700 Intel Z790 DDR5 ATX Motherboard

The MSI Pro Z790-P WIFI is a high-performance motherboard engineered for professionals and enthusiasts alike. Supporting 12th, 13th, and 14th Gen Intel Core processors, this motherboard is a perfect foundation for productivity and gaming setups. With its LGA 1700 socket and Intel Z790 chipset, it ensures compatibility with the latest technologies.

It features advanced DDR5 memory support, allowing up to 192GB of RAM with overclocking potential up to 7000+ MHz. PCIe 5.0 x16 slot and robust expansion options provide ample support for high-end GPUs and other peripherals. Equipped with Intel Wi-Fi 6E and a 2.5Gbps LAN, the board guarantees fast, stable connectivity for demanding applications.

A robust storage solution includes four M.2 slots with PCIe 4.0 support and six SATA 6Gb/s ports, supporting various RAID configurations. Enhanced thermal design, including EZ Debug LEDs and optimized power delivery, ensures stability under heavy loads. RGB lighting and customizable headers allow users to create visually stunning builds.

The MSI Pro Z790-P WIFI is a reliable and feature-rich choice for those seeking cutting-edge performance and versatility.

Specifications

Chipset: Intel Z790
CPU Support:

• 12th/13th/14th Gen Intel Core, Pentium Gold, and Celeron processors
• LGA 1700 socket

Memory:

• 4x DDR5, up to 192GB
• Overclocking up to 7000+ MHz

Graphics:

• HDMI 2.1 (4K 60Hz), DisplayPort 1.4 (4K 60Hz)

Expansion Slots:

• 3 x PCIe x16 (1x PCIe 5.0)
• 1 x PCIe 3.0 x1

Storage:

• 4 x M.2 slots (PCIe 4.0)
• 6 x SATA 6Gb/s

USB Ports:

• Rear:
  • 1 x USB 3.2 Gen 2×2 Type-C
  • 1 x USB 3.2 Gen 2 Type-A
  • 2 x USB 3.2 Gen 1 Type-A
  • 4 x USB 2.0 Type-A
• Front:
  • 1 x USB 3.2 Gen 2 Type-C
  • 4 x USB 3.2 Gen 1 Type-A
  • 4 x USB 2.0

Network:

• Intel 2.5Gbps LAN, Wi-Fi 6E

Audio:

• Realtek ALC897, 7.1-Channel HD

Internal I/O Connectors:

• 1 x ATX Power Connector (24-pin)
• 2 x CPU Power Connectors (8-pin)
• 1 x CPU Fan Header
• 1 x Pump Fan Header
• 6 x System Fan Headers
• 2 x Front Panel Headers (JFP)
• 1 x Chassis Intrusion Header (JCI)
• 1 x Front Audio Header (JAUD)
• 1 x TBT Connector (JTBT)
• 1 x Tuning Controller Connector (JDASH)
• 2 x Addressable V2 RGB LED Headers (JARGB_V2)
• 1 x RGB LED Header (JRGB)
• 1 x TPM Pin Header (Supports TPM 2.0)
• 4 x USB 2.0 Headers
• 4 x USB 3.2 Gen 1 Headers
• 1 x USB 3.2 Gen 2 Type-C Header

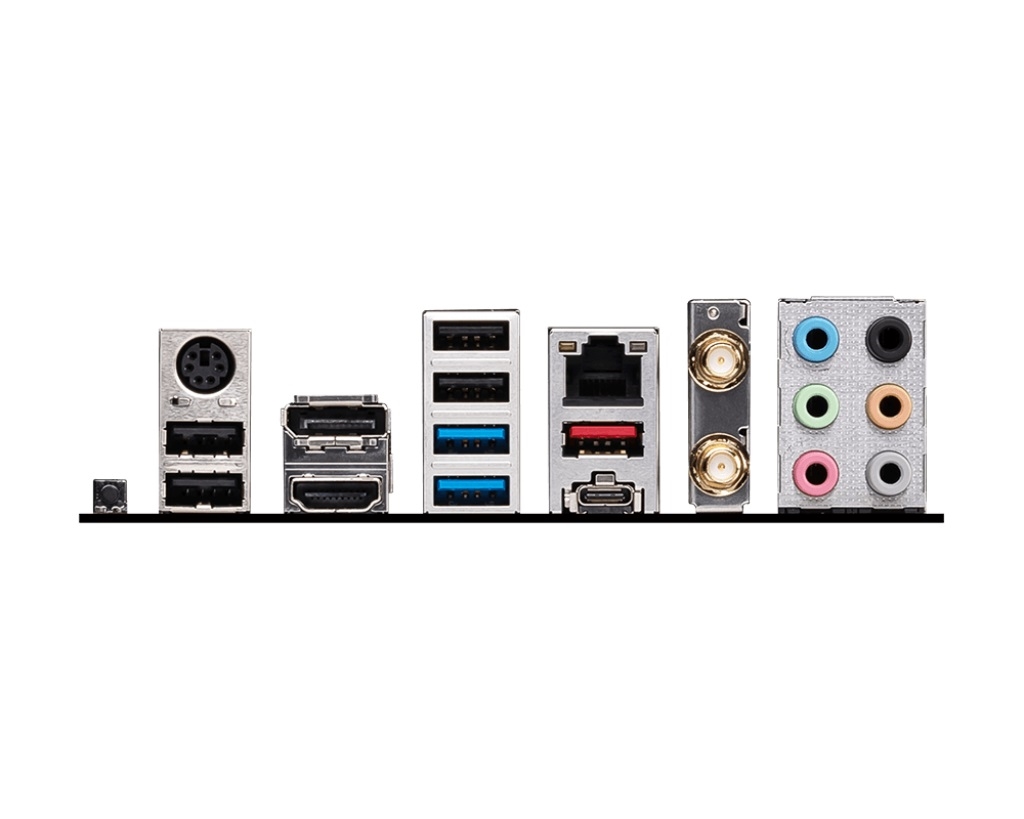

Back Panel I/O Ports:

• 1 x Keyboard/Mouse Combo Port
• 1 x DisplayPort
• 1 x HDMI
• 4 x USB 2.0 Type-A
• 1 x USB 3.2 Gen 2×2 Type-C
• 1 x USB 3.2 Gen 2 Type-A
• 2 x USB 3.2 Gen 1 Type-A
• 1 x 2.5Gb LAN Port
• 1 x Wi-Fi/Bluetooth Module
• 3 x Audio Jacks
• 1 x Flash BIOS Button

Operating System: Windows 11/10 64-bit
