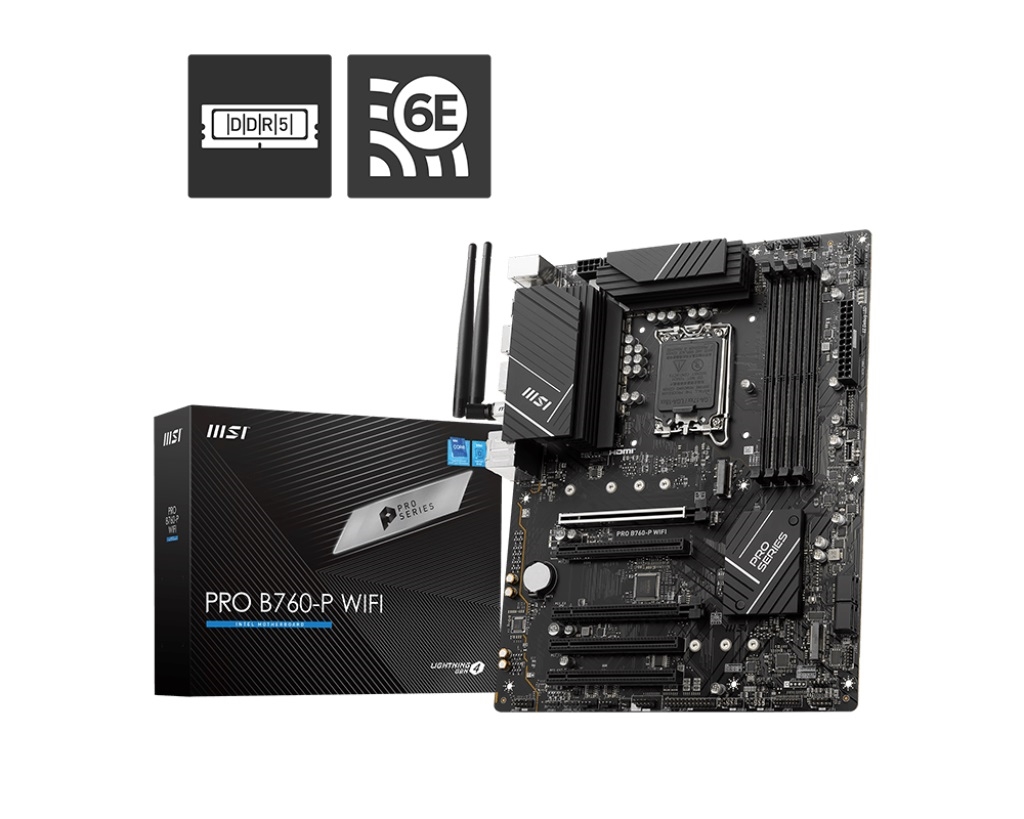

MSI Pro B760-P WIFI LGA 1700 Intel B760 DDR5 ATX Motherboard

Description

MSI Pro B760-P WIFI LGA 1700 Intel B760 DDR5 ATX Motherboard

The MSI PRO B760-P WIFI motherboard combines robust performance with essential features for professionals and enthusiasts. Designed with the Intel B760 chipset and LGA 1700 socket, it supports 12th, 13th, and 14th Gen Intel Core, Pentium Gold, and Celeron processors, ensuring reliable and future-ready compatibility.

This motherboard supports DDR5 memory, with up to 192GB capacity and speeds reaching 6800+ MHz when overclocked. It features dual M.2 PCIe 4.0 slots and four SATA 6Gb/s ports, providing versatile and fast storage options. The PCIe 4.0 x16 slot ensures excellent performance for graphics-intensive applications, while the integrated Intel Wi-Fi 6E and 2.5Gbps LAN deliver seamless and high-speed networking.

Built with productivity in mind, the PRO B760-P WIFI offers comprehensive connectivity, including multiple USB ports and onboard DisplayPort and HDMI for 4K video output. Enhanced by MSI’s exclusive features like Memory Boost, Frozr AI cooling, and EZ Debug LED, this motherboard is reliable and easy to set up. Whether for work or light gaming, it’s a dependable solution.

Specifications

Chipset: Intel B760
CPU Support:

• 12th, 13th, and 14th Gen Intel Core, Pentium Gold, and Celeron processors
• LGA 1700 socket

Memory:

• 4 x DDR5 DIMM slots, up to 256GB
• Supports speeds up to 6800+ MHz (OC)

Graphics:

• 1 x HDMI 2.1 (4K 60Hz)
• 1 x DisplayPort 1.4 (4K 60Hz)

Expansion Slots:

• 5 x PCIe x16 slot
  • 1 x PCIe 4.0 x16
  • 2 x PCIe 4.0 x4
  • 3 x PCIe 3.0 x1

Storage:

• 2 x M.2 PCIe 4.0 slots
• 4 x SATA 6Gb/s ports
• RAID support: RAID 0, 1, 5, 10

USB Ports:

• Rear:
  • 4 x USB 2.0 Type-A
  • 2x USB 3.2 Gen 2 Type A
  • 1x USB 3.2 Gen 2 Type C
• Front:
  • 4 x USB 2.0
  • 2x USB 3.2 Gen1 Type A
  • 1x USB 3.2 Gen1 Type C

Network:

• Realtek RTL8125BG 2.5Gbps LAN
• Intel Wi-Fi 6E, Bluetooth 5.3

Audio:

• Realtek ALC897 Codec
• 7.1-Channel High Definition Audio

Internal I/O Connectors:

• 1x Power Connector(ATX_PWR)
• 2x Power Connector(CPU_PWR)
• 1x CPU Fan
• 1x Pump Fan
• 5x System Fan
• 2x Front Panel (JFP)
• 1x Chassis Intrusion (JCI)
• 1x Front Audio (JAUD)
• 1x Printer Port (JLPT)
• 1x Com Port (JCOM)
• 2x Addressable V2 RGB LED connector (JARGB_V2)
• 1x RGB LED connector(JRGB)
• 1x TPM pin header(Support TPM 2.0)
• 4x USB 2.0 ports
• 2x USB 5Gbps Type A ports
• 1x USB 5Gbps Type C ports

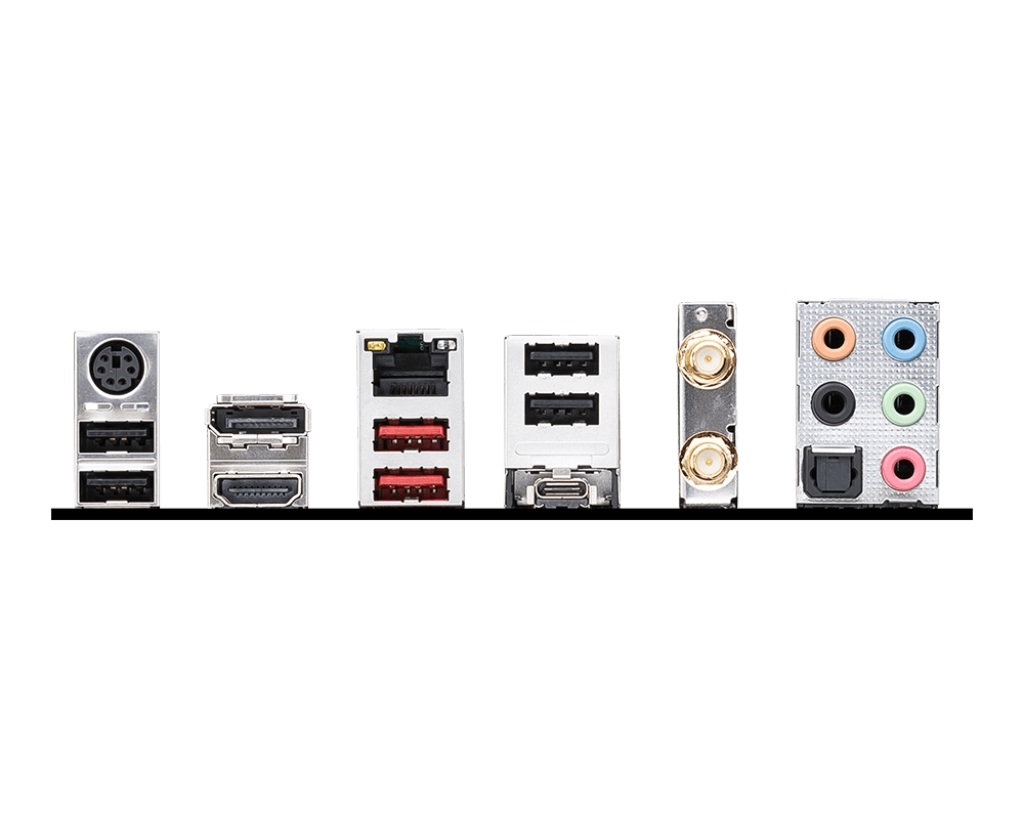

Back Panel I/O Ports:

• Keyboard / Mouse
• DisplayPort
• 2.5G LAN
• USB 2.0
• Wi-Fi / Bluetooth
• Audio Connectors
• USB 2.0
• HDMI^TM
• USB 3.2 Gen 2 10Gbps (Type-A)
• USB 3.2 Gen 2 10Gbps (Type-C)
• S/PDIF-OUT

Operating System: Windows 11 64-bit, Windows 10 64-bit
Form Factor: ATX (243.84mm x 304.8mm)
