Asus Prime H610M-A D4 LGA 1700 Intel H610 DDR4 Micro-ATX Motherboard

Description

Asus Prime H610M-A D4 LGA 1700 Intel H610 DDR4 Micro-ATX Motherboard

The Asus Prime H610M-A D4 LGA 1700 Intel H610 Micro-ATX Motherboard provides a stable foundation for building a reliable PC. Designed for Intel 12th, 13th, and 14th Gen processors, it delivers consistent performance for everyday computing and productivity tasks. Its Micro-ATX form factor ensures compatibility with compact PC builds while offering ample functionality.

This motherboard supports DDR4 memory up to 3200MHz, ensuring smooth multitasking and application performance. With PCIe 4.0 support, it unlocks faster data transfer speeds for storage and graphics cards. The H610 chipset enables versatile connectivity, including multiple USB ports and high-speed M.2 slots for NVMe SSDs.

Asus integrates its renowned 5X Protection III technology into the Prime H610M-A D4, ensuring long-lasting durability and reliability. Enhanced power delivery and cooling features, like Fan Xpert 2+, keep your system running smoothly under load. The motherboard also includes Realtek audio for clear, immersive sound during entertainment or gaming sessions.

With its user-friendly BIOS and customization options, the Prime H610M-A D4 makes PC building simple for newcomers and experienced builders alike. Its balance of features, stability, and affordability makes it an ideal choice for creating a dependable computer.

Specifications

Model

• Name: PRIME H610M-A D4

News & Updates

• Latest BIOS Update: Released 2024/08/12, featuring Intel microcode (0x129) for improved stability with Intel Core 13th and 14th Gen processors. Visit the support site for updates.

---

Key Specifications

CPU Compatibility

• Intel® Socket LGA1700
• Supports Intel® Core™ 14th, 13th, and 12th Gen processors, Pentium® Gold, and Celeron® processors.
• Includes Intel® Turbo Boost Technology 2.0 and 3.0* compatibility.

Chipset

• Intel® H610 Chipset

Memory

• 2 x DIMM slots, supporting DDR4 memory up to 64GB and speeds up to 3200MHz.
• Dual-channel memory architecture with Intel® XMP support.

Graphics Outputs

• 1 x DisplayPort (4K@60Hz, DisplayPort 1.4).
• 1 x HDMI® port (4K@60Hz, HDMI 2.1).
• 1 x D-Sub port.

Expansion Slots

• PCIe 4.0 x16 for Intel® Core™ Processors.
• PCIe 3.0 x1 slot from H610 chipset.

Storage

• 2 x M.2 slots for NVMe SSDs.
• 4 x SATA 6Gb/s ports.

Connectivity

• Ethernet: Intel® 1Gb Ethernet.
• V-M.2 Slot for Wifi Module
• USB Ports:
  • Rear: 2 x USB 3.2 Gen 2, 4 x USB 2.0.
  • Front headers: 2 x USB 3.2 Gen 1, 3 x USB 2.0.

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC.
• Premium audio capacitors, audio shielding, and dedicated PCB layers.

---

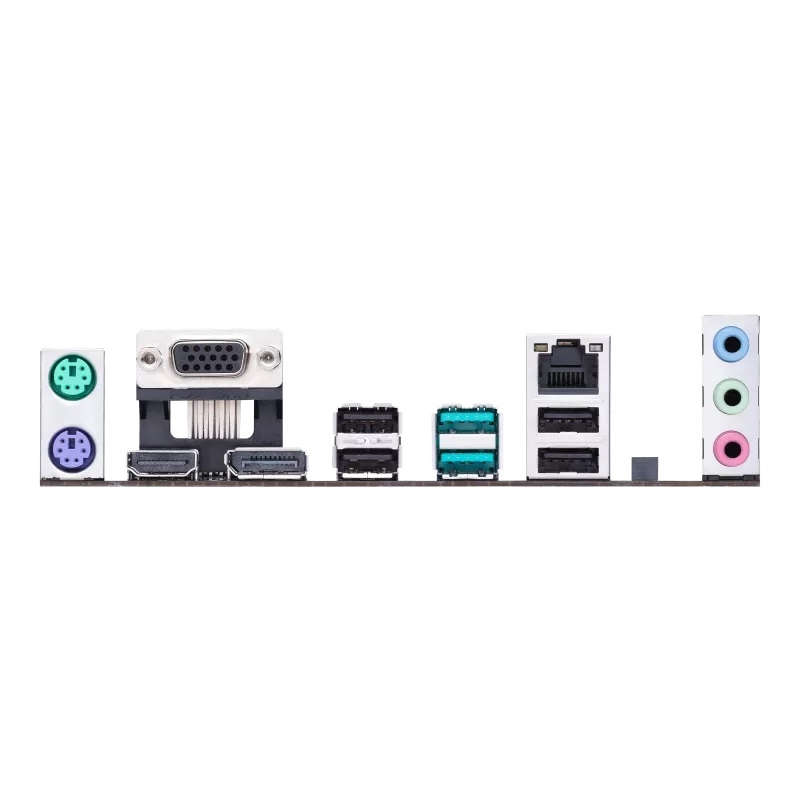

Back Panel I/O Ports

• 2 x USB 3.2 Gen 2 Type-A ports.
• 4 x USB 2.0 Type-A ports.
• 1 x DisplayPort.
• 1 x HDMI® port.
• 1 x D-Sub port.
• 1 x V-M.2 slot (Key E).
• 1 x Intel® 1Gb Ethernet port.
• 3 x Audio jacks.
• 1 x PS/2 Keyboard (purple) port.
• 1 x PS/2 Mouse (green) port.

---

Internal I/O Connectors

Fan and Cooling:

• 1 x 4-pin CPU Fan header.
• 2 x 4-pin Chassis Fan headers.

Power:

• 1 x 24-pin Main Power connector.
• 1 x 8-pin +12V Power connector.

Storage:

• 2 x M.2 slots (Key M).
• 4 x SATA 6Gb/s ports.

USB Headers:

• 1 x USB 3.2 Gen 1 header (supports 2 ports).
• 2 x USB 2.0 headers (supporting 3 ports).

Miscellaneous:

• 3 x Addressable Gen 2 headers.
• 2 x AURA RGB headers.
• 1 x Clear CMOS header.
• 1 x Front Panel Audio header (AAFP).
• 1 x COM Port header.
• 1 x S/PDIF Out header.
• 1 x Speaker header.
• 1 x SPI TPM header (14-1 pin).
• 1 x 10-1 pin System Panel header.

---

Special Features

• ASUS 5X Protection III: DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core.
• ASUS AURA Sync with RGB headers.
• Comprehensive thermal solutions including VRM heatsinks.

Accessories Included

• 2 x SATA 6Gb/s cables.
• 1 x I/O Shield.
• 1 x M.2 SSD screw package.
• Support DVD and user guide.

Form Factor

• Micro-ATX (24.4 cm x 21.1 cm).
